Plans for Guitars and Guitar Making Tools



Plans for Guitars*

After you've made your purchase, you will receive an email with a link to download the plans as a .pdf file. Each plan set comes with inches and millimeter dimensions, full sheets for large format printing, tiled sheets for desktop printing, a sample wiring schematic, and a fretboard radius template. Guitar plans DO NOT include a list of recommended components or where to source them.


Guitar plan image
Apollyon 6 String
  • 25.5" scale
  • Bolt on neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Apollyon 7 String
  • 27" scale
  • Bolt on neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Apollyon 7 String Multiscale
  • 25" to 28" scale
  • Bolt on neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Clarksdale 6 String
  • 25.5" scale
  • Bolt on neck w/flat headstock
  • HSS pickup configuration
  • Price: $10
Guitar plan image
Diabolique 6 String
  • 25.5" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Fastback 6 String
  • 25.5" scale
  • Bolt on neck w/angled headstock
  • Three single coil pickups
  • Price: $10
Guitar plan image
Special 6 String
  • 25.5" scale
  • Bolt on neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Neckrofeliac 6 String
  • 25.5" scale
  • Neck through w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Single Cut 6 String
  • 24.75" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Super King 6 String
  • 25.5" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Tomahawk 6 String
  • 25.5" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Horn O Plenty 4 String Bass
  • 34" scale
  • Bolt on neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
GTS 6 String
  • 25.5" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Model Eleven 6 String
  • 24.75" scale
  • Set-in neck w/angled headstock
  • Two humbucker pickups
  • Price: $10
Guitar plan image
Echo Double Neck
  • 6 string/12 string 25.5" scale
  • Set-in necks w/angled headstocks
  • Two humbucker pickups each
  • Price: $10

Instructions for Guitar Making Tools*

After you've made your purchase, you will receive an email with a link to download the plans as a .pdf file. Your purchase will include a detailed, fully illustrated, assembly manual which includes a parts list and a cut plan for the required structural parts. The only plan that includes a source list for where to purchase the parts is the fretboard side dot drilling jig. The other plans DO NOT include a source list since they would be nearly impossible to maintain. Locating the required parts can be done by searching for their description as provided in the parts list.

PLEASE NOTE:

The dimensions on the buffing machine, flip top tool stand, pickup winding machine, drum/disk sander, and fretboard side dot drilling jig plans are in inches only at this time.

The dimensions of the CNC machine plan are in millimeters except for certain parts which are only available in inches.


CNC machine image
CNC Machine

Build your own affordable 24" X 48" CNC machine.

Price: $35

Buffing machine image
Buffing Machine

Make this buffing machine and get that elusive mirror-like shine.

Price: $20

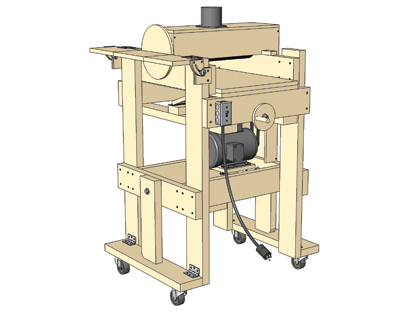

Drum sander image
Drum/Disk Sander

Build this 18" drum/10" disk sander for your workshop.

Price: $30


flip top tool stand image
Flip Top Tool Stand

Build your own mobile flip top tool stand.

Price: $15

guitar pickup winding machine image
Pickup Winding Machine

Make your own pickups with this winder.

Price: $20

side dot drilling jig image
Fretboard Side Dot Drilling Jig

For 24.625, 24.75, 25, 25.5" scale lengths.

Price: $8


CNC guitar pickup winder image
CNC Guitar Pickup Winder

Watch this video before you buy.

Price: $40


*Digital downloads cannot be returned and therefore, the price paid cannot be refunded. All sales are final. The purchaser of these documents and/or the person(s) tasked with the construction of these guitars and tools shall assume responsibility for their construction and use. The author of this document (Highline Guitars, LLC operating as eGuitar Plans) cannot be held liable in any way if the purchaser/builder is unable to complete the construction of these guitars and tools or if injuries are sustained during their construction and/or use.


Contact eGuitar Plans
